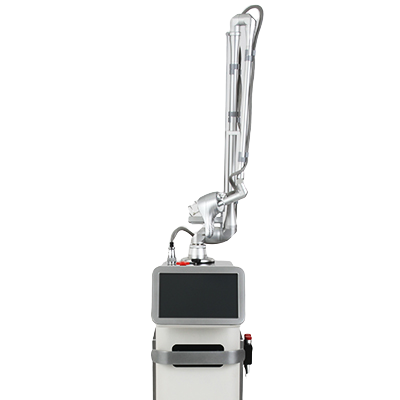

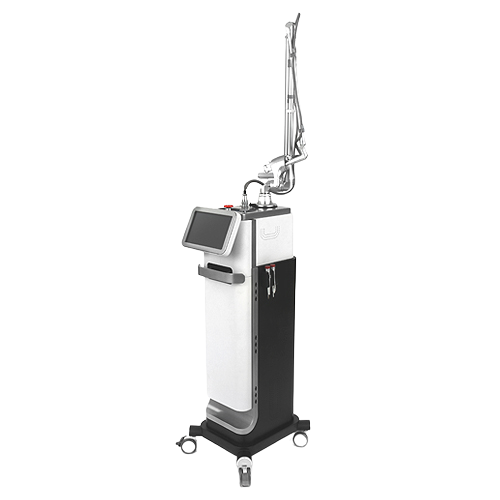

Bioxel

  • Fractional CO2 Laser with Glass Tube
  • BIOXEL uses fine laser beam to minimize skin damage by heat and to shorten the recovery and rejuvenation period. Therefore, the patients can resume normal daily activities soon after treatment.
  • Treatment time can be shortened by adjusting spot size and the beam density, which is beneficial for both of the operator and the patient.
  • Fractional Mode & General CO2 Mode & Dental Mode & LVR Mode
  • Reduced Pain & Excellent Effectiveness
  • Three Patterns : ARRAY, GRID, RANDOM
    1. Smart & Various Protocols for User’s Convenience
    2. Max 4489 dots to an area of 20x20mm
    3. Various scan shapes: Square, Hexagon, Triangular, Circular
  • Fractional Hand Piece Skin tightening, Wrinkles, Large Pore, Skin Resurfacing, Acne scar, Stretch Mark, Laser Peeling, Age Spot, Pudenda, etc.
  • General Hand piece (50mm or 100mm) Mole, Wart, Freckles, Birthmarks, Tumor elimination, Condylom Syringoma, Snoring..etc

Higher Water Absorption

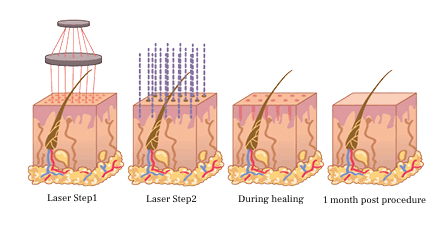

BIOXEL has higher water absorption, so that skin surface vaporizes and creates a Micro Ablative Columns. When you emit BIOXEL laser to skin surface, the water is heated to a boiling point causing the water molecules to convert to vapor(ablation). The heat generated creates a coagulation zone which initiates the wound healing response. As soon as skin is ablated, necrotic walinduces immediate collagen shrinkage. The heat generated denatures the collagen which recoils back to normal collagen causing the skin to contract improving skin laxity.

Smart Protocol Function

BIOXEL has smart protocol function. It can save setting values according to treatment purposes such as Surgical, Dental, Fractiona LVR, etc., so users can easily recall set values. Users can also save these settings as users want.

Specifications

Laser Type CO2 Laser
Wavelength 10,600nm
Laser Power 1-40W
Pulse Duration 220-240V~, 50/60 Hz
Cooling System Water cooling
Dimensions 430(W) x 480(D) x 1240(H)mm
Weight 47kgs
Display 10.2“ Touch screen color LCD
Function – Fractional CO2

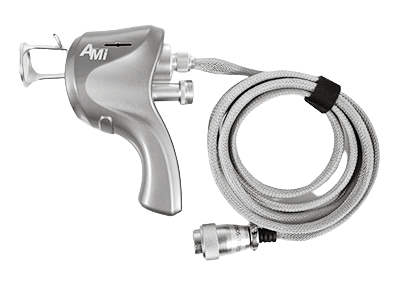

Hand Piece Type Fractional Hand Piece Manual LVR Hand Piece(Optional)
Scan Size 2×2-20x20mm
Shape Square, Hexagon, Triangular, Circular
Pattern Array, Grid, Random
Depth 1-5 Level
Repeat Time 0.5-2.5 sec, Single
Density 1-23 Level
